# Install Insys EBW100 router with UMTS connection and OpenVPN Client

# Requirements

  • OpenVPN server is still running
  • Client cert file .OVPN has been downloaded locally from OpenVPN AS
  • SIM with an internet mobile provider up-to-date subscription
  • SIM inserted in it slot
  • Power supply is up

# First connection

  1. Access to admin interface with http://192.168.1.1. Default: insys/icom

# UMTS

  1. Go to UMTS
  2. Set PIN and press OK

UMTS PIN

  1. Signal quality appear when connection is UP

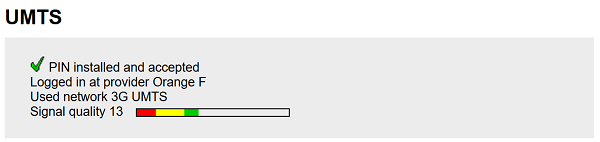

UMTS Signal

# Dial-Out

  1. Go to Dial-Out
  2. Select Yes to Dial-Out
  3. Configure Dialing options for UMTS with provider settings (Click on ? to read details)

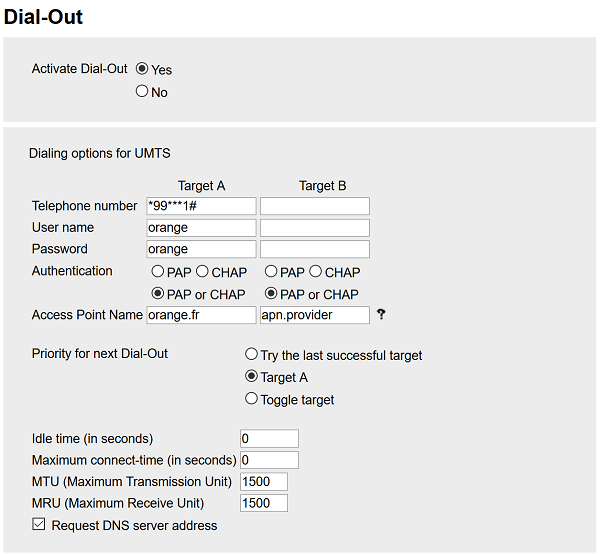

Dial-Out

  1. Press OK

# OpenVPN Client

  1. Go to Dial-Out > OpenVPN client
  2. Check Activate OpenVPN client
  3. Define OpenVPN settings from .OVPN file

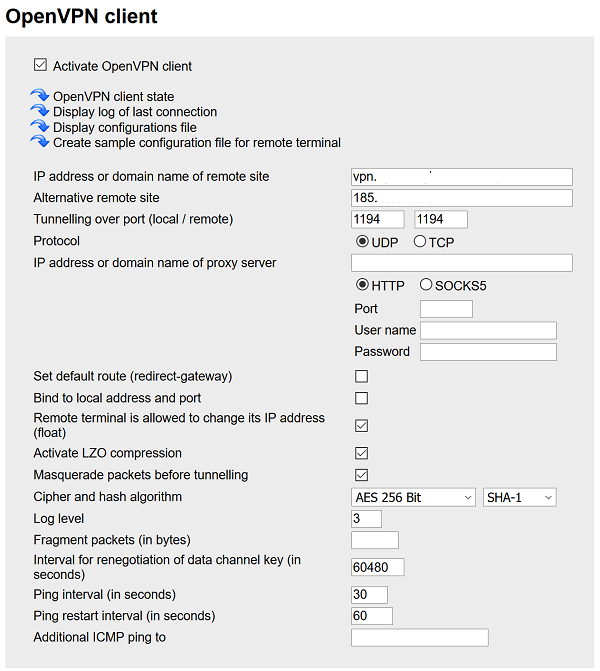

OpenVPN client main

  1. Select Authentication based on certificate
  2. Fill username and password with OpenVPN AS settings

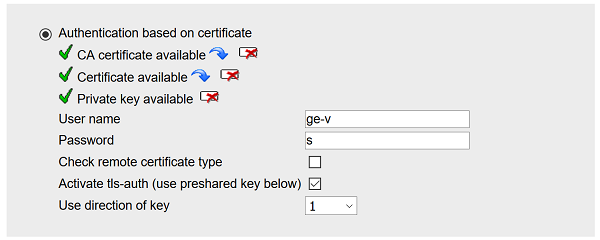

OpenVPN client cert

  1. Upload each certificate files splitted from the .OVPN file

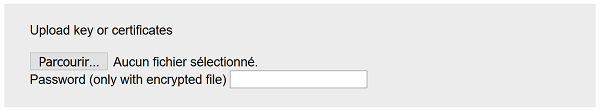

OpenVPN client upload

Note: Press OK after each file selection

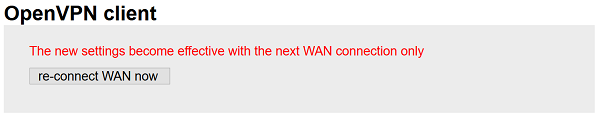

  1. Press OK and reload system by pressing on re-connect WAN now

OpenVPN client re-connect now

  1. Wait 1-2 minutes and go to OpenVPN client state for controlling connection

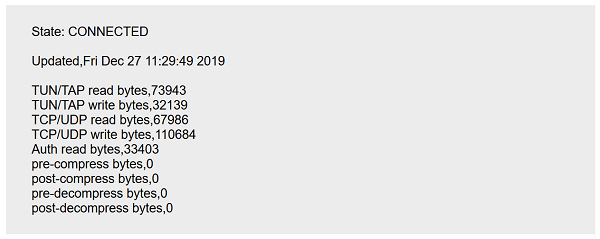

OpenVPN client connectec

  1. The router is connected and available in OpenVPN server current users list.

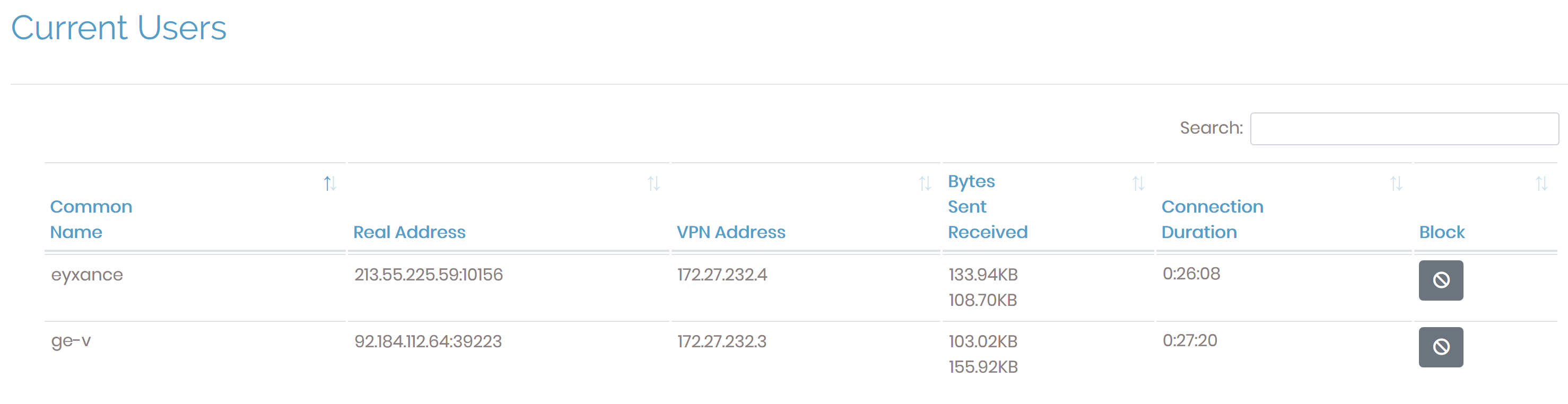

OpenVPN current users

# OVPN file

OpenVPN AS deliver a unique .OVPN file with all the necessary for the connection with a PC/Mobile OpenVPN client. In our case, EBW100 is not able to read the complete file and you need to extract data for EBW100 configuration.

  1. Open .OVPN file in text editor
  2. Use Connection settings to complete EBW OpenVPN Client connection form
setenv FORWARD_COMPATIBLE 1
client
server-poll-timeout 4
nobind
remote vpn.xxx.comonway.com 1194 udp
remote vpn.xxx.comonway.com 1194 udp
remote vpn.xxx.comonway.com 9443 tcp
remote vpn.xxx.comonway.com 1194 udp
remote vpn.xxx.comonway.com 1194 udp
remote vpn.xxx.comonway.com 1194 udp
remote vpn.xxx.comonway.com 1194 udp
remote vpn.xxx.comonway.com 1194 udp
dev tun
dev-type tun
ns-cert-type server
setenv opt tls-version-min 1.0 or-highest
reneg-sec 604800
sndbuf 0
rcvbuf 0
auth-user-pass
# NOTE: LZO commands are pushed by the Access Server at connect time.
# NOTE: The below line doesn't disable LZO.
comp-lzo no
verb 3
setenv PUSH_PEER_INFO
  1. Copy CA certificate inside <ca></ca> tags to ca.crt
