# Influxdb CSV Report To FTP

Node-RED offer the desired flexibility for processing all kind of dataflux. The essence of Comonway.

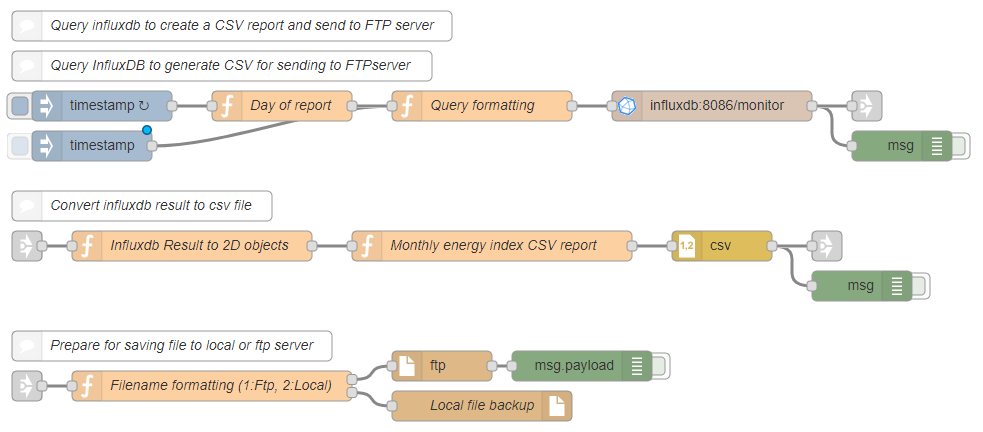

Node Red Influxdb Csv Report

We focus in this note on InfluxDB datasource but we organize code for processing all kind of datasource type:

  1. Write your query to your datasource
  2. Format the response in a 2D objects (timestamp/objects) list for time report
  3. Create the report with the 2D objects
  4. Send it to a distant server

Example of 2D time objects:

{
  "2018-04-01T23:45:00.000Z":
  {
    "Accumulateurs":{"energie":null,"compteur_adresse":"22"},
    "Huile thermique":{"energie":null,"compteur_adresse":"21"},
    "Grille refroidissement":{"energie":null,"compteur_adresse":"22"},
    "Recuperateur de chaleur":{"energie":null,"compteur_adresse":"22"}
  }
}

Requirements:

Node-RED nodes:

Note: the ftp-sftp node is not completed and must be updated in next version.

Node-RED JS libraries:

  • influxdb/influxdb-query-define-last-period.js
  • influxdb/influxdb-result-to-2d-objets.js
  • report/monthly-energy-index-csv-report.js
  • global/zero-padding.js

Note: These nodes are available in Comongate Node-RED.

# Nodes Configuration

  • Query: Define the period in msg.period = lastPeriod(new Date(msg.payload), "1M", 23, 45, 0, 0); and update query
  • InfluxDB: Define influxdb server and Retention Policy.
  • Result format: Define time and name index in msg.payload = resultOrderByDate(msg.payload, "time", "compteur_nom");
  • CSV report: Define report parameters like name, sitename and value to expose in the report
  • CSV node: Keep as default
  • Filename format: Define sitename, local and ftp folder path
  • FTP: Define FTP server, operation (to PUT) and Working Directory inside ftp server
  • Local file: Define Action as Overwrite file and check all checkbox
